Display Settings

Description: Sets grid diplay settings. Sub items of this menu are shown in Table 35.

Table 35 Menu items in [Display Settings]

Menu	Description
[Grid Shape] (S)	Edits display settings on grid shape.
[Node Attribute] (N)	Edits display settings on grid node attribute.
[Cell Attribute] (C)	Edits display settings on grid cell attribute.
[Set Up Scalarbar (U)	Edits display settings on colorbar.

[Grid Shape] (S)

Description: Set up display setting of grid shape.

When you select [Grid Shape], the [Grid Shape Display] dialog (Figure 366). Modify the setting and click on [OK]. Figure 367 shows an example of grid shape with Grid lines setting [Outline Only] and [All] respectively.

[Visible] checkbox in [Grid indices] group box is enabled only when [All] is selected in [Grid lines] group box.

Figure 366 The [Grid Shape Display] dialog

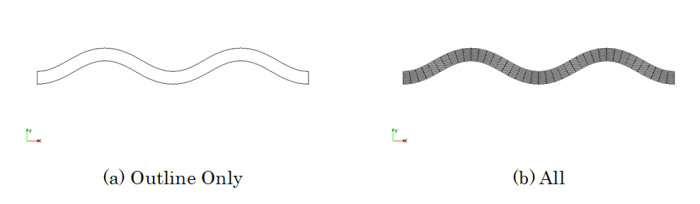

Figure 367 Example of grid shapes

Node Attribute (N)

Description: Sets up display setting of grid node attribute. This item is enabled only when a grid node attribute is selected in [Object Browser] of [Pre-processing Window].

When you select [Node Attribute], the [Grid Node Attribute Display Setting] dialog (Figure 368) will open. Modify the setting and click on [OK].

Please refer to sec_colormap about the dialog.

Figure 369 shows examples of displays on each mode.

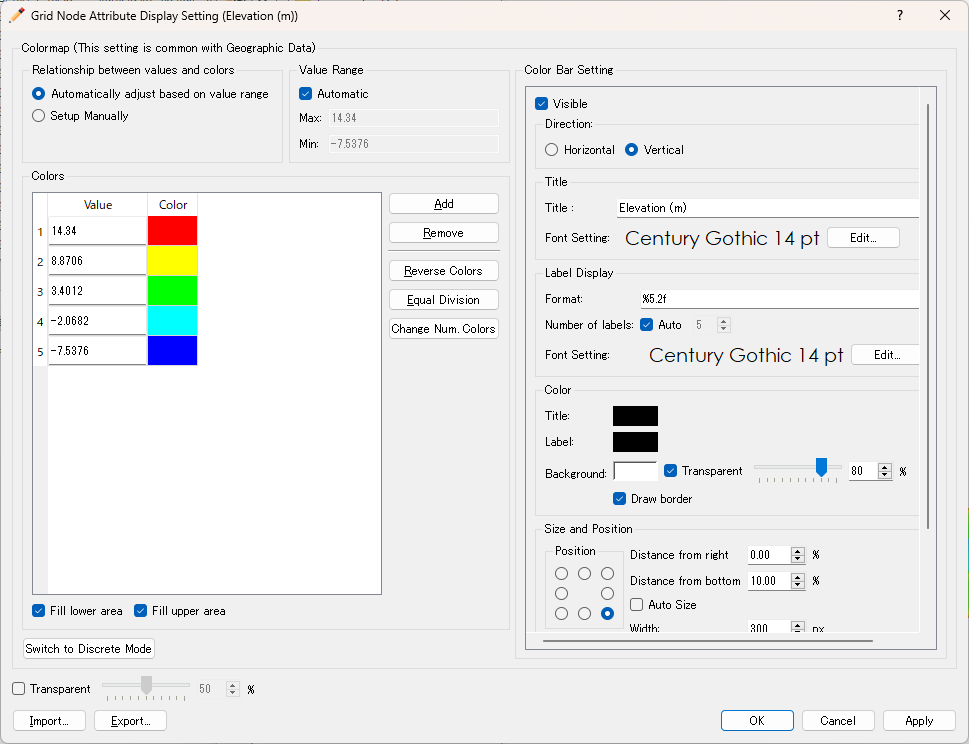

Figure 368 The [Grid Node Attribute Display Setting] dialog

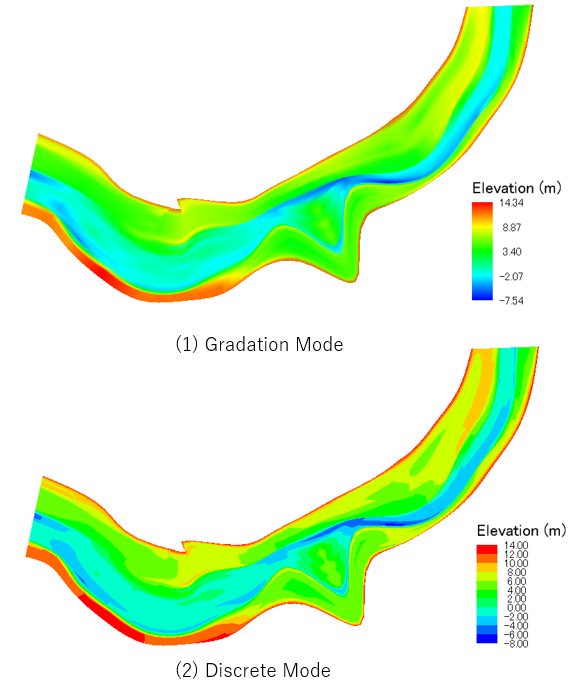

Figure 369 Examples of grid node attribute displays

Cell Attribute (C)

Description: Sets up display setting of grid cell attribute. This item is enabled only when a grid cell attribute is selected in [Object Browser] of [Pre-processing Window].

When you select [Cell Attribute], the [Grid Cell Attribute Display Setting] dialog (Figure 370) will open. Modify the setting and click on [OK].

Figure 370 The [Grid Cell Attribute Display Setting] dialog
