[Grid] (G)

Description: Imports a grid.

Grid can be imported from the file formats in Table 9.

Table 9 Grid data importable file formats

Type	Format
Structured grid	iRIC project file (*.ipro)
	CGNS file (*.cgn)
	iRIC Grid CSV file (*.csv)
	RIC-Nays grid file (*.grid)
Unstructured grid	iRIC project file (*.ipro)
	CGNS file (*.cgn)
	TRIANGLE node file (*.node)

When you select [Grid], the [Select file to import] dialog (Figure 78) will open. Select the file you want to import and click on [Open]. Figure 79 shows the iRIC window after importing a grid.

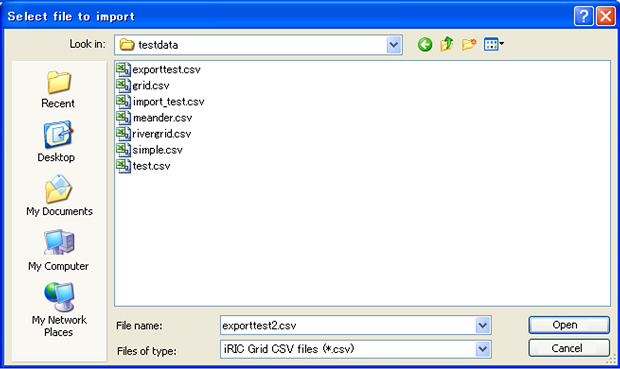

Figure 78 The [Select file to import] dialog

Figure 79 The iRIC window after importing a grid
