[Grid Creating Condition] (I)

Description: Imports a grid creating condition.

Grid creating condition can be imported from the file formats below:

• iRIC grid creating condition file (*.igcc)

iRIC grid creating condition file (*.igcc) is a special binary format that is defined for iRIC.

When you select [Grid Creating Condition], the [Select file to import] dialog (Figure 76) will open. Select the file you want to import and click on [Open]. Figure 77 shows the iRIC window after importing a grid creating condition.

Figure 76 The [Select file to import] dialog

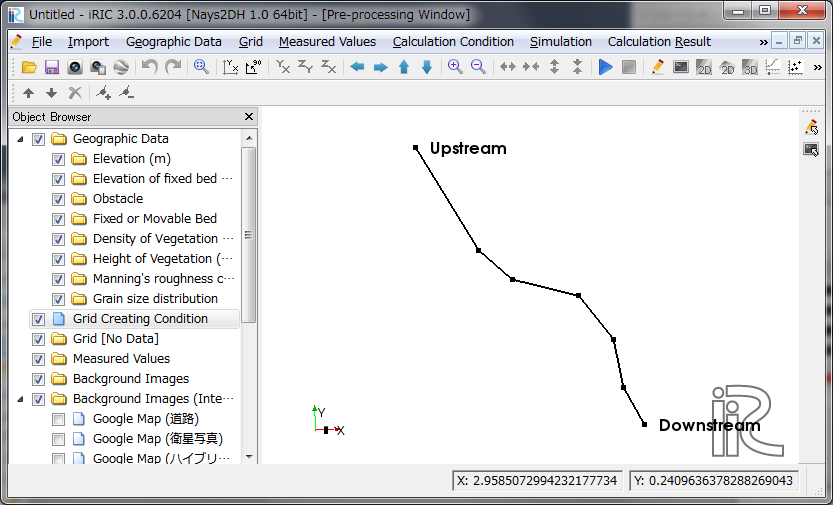

Figure 77 The iRIC window after importing a grid creating condition
