[Grid] (G)

Description: Exports a grid.

Grid can be exported to the file formats in Table 11.

Table 11 Grid exportable file formats

Type	Format
Structured grid	CGNS file (*.cgn)
	iRIC grid CSV file (*.csv)
	RIC-Nays grid file (*.grid)
	LandXML file (*.xml)
	VTK file (*.vtk)
Unstructured grid	CGNS file (*.cgn)
	LandXML file (*.xml)
	VTK file (*.vtk)

When you select [Grid], the [Select file to export] dialog (Figure 87) will open. Input the file name you want to export and click on [Save].

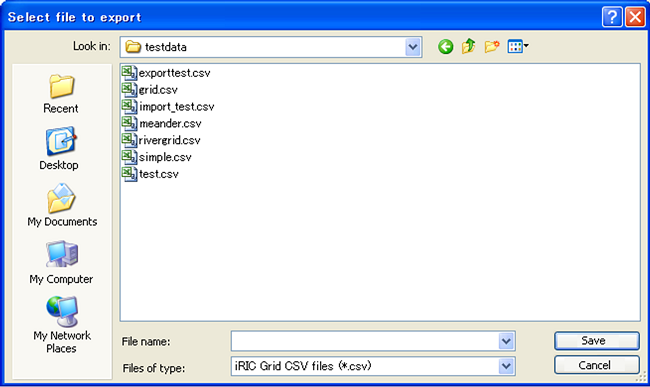

Figure 87 The [Select file to export] dialog
