iRIC functions

iRIC functions can be categorized into the seven groups below:

  • Editing geographic data

  • Creating grids

  • Editing grids

  • Loading measured data

  • Setting calculation conditions

  • Lunching a solver

  • Visualizing the calculation results

  • Making a graph

The abstract of each function groups are explained in the following sections.

Editing geographic data

Geographic data handles coordinates of data and the attributes at that coordinates, such as elevation, vegetation type, vegetation density, land use. You can import and edit geographic data with iRIC.

Geographic data are used to determine the attributes at each node or cell by interpolation. You can use cross-section data also for creating a grid.

The attributes that you need to input differ by the solver you use.

iRIC can import and edit four types of geographic data:

  • Point cloud data

  • Cross-section data

  • Raster data

  • Time series raster data

  • Polygons

  • Lines

  • Points

Figure 23, Figure 24, Figure 25, Figure 26, Figure 27 and Figure 28 show example of [Point Cloud Data], [Cross-Section Data], [Raster Data], [Polygons], [Lines] and [Points] respectively.

../_images/geodata_pointset.png

Figure 23 Example of [Point Cloud Data]

../_images/geodata_riversurvey.png

Figure 24 Example of [Cross-Section Data]

../_images/geodata_raster.png

Figure 25 Example of [Raster Data]

../_images/geodata_polygon.png

Figure 26 Example of [Polygons]

../_images/geodata_polyline.png

Figure 27 Example of [Lines]

../_images/geodata_points.png

Figure 28 Example of [Points]

Refer to [Geographic Data] for detail.

Creating a grid

You can create the grid that the solver uses. A grid can be created in two steps:

  1. Determine the grid shape (coordinates of each node).

  2. Determine the node/cell attributes by interpolating geographic data.

In step 1., you select one of the algorithms that can produce the grid that the solver requires, and then, you create a grid by specifying grid creating condition.

Step 2. is automatically done. iRIC does this step automatically by recognizing the type of geographic data, and selecting the appropriate algorithm for interpolation for that type.

iRIC can create grids of the following types:

  • Two-dimensional structured grid

  • Two-dimensional unstructured grid

  • One-dimensional structured grid (Each node holds sectional data.)

Refer to Grid creating functions for details.

Editing the grid

You can edit the grid. You can do the following operations:

  • Editing the grid shape (the coordinates of each node)

  • Editing the attributes of each node or cell

Refer to Editing the grid for the details.

Loading measured data

You can load measured data from text files, to use it as background data for creating data, or to compare with calculation results. You can do the following operations:

  • Importing measured data from text files

  • Editing display settings of measured data

Refer to [Measured Data] (M) for the details.

Setting the calculation conditions

You can set the calculation conditions. The calculation conditions differ by the solver selected.

Refer to [Calculation Conditions] for the details.

Launching the solver

You can launch the solver and monitors the simulation status using [Solver Console]. You can stop calculations when you want to. Figure 29 shows an example of the [Solver Console] that displays solver outputs.

../_images/solver_console_window.png

Figure 29 [Solver Console]

Refer to [Simulation] (S) for details.

Post-processing

You can visualize the calculation results that the solver output. You can use [2D Post-processing Window] (Figure 30), [Bird’s-Eye 2D Post-processing Window] (Figure 31), and [3D Post-processing Window] (Figure 32) for that purpose.

Refer to Visualization functions for details.

../_images/2d_post_window.png

Figure 30 [2D Post-processing Window]

../_images/birdseye_2d_post_window.png

Figure 31 [Bird’s-Eye 2D Post-processing Window]

../_images/3d_post_window.png

Figure 32 [3D Post-processing Window]

Making a graph

You can display graphs with the calculation results that the solver output, using [Graph Window] (Figure 33) and [Scattered Chart Window] (Figure 34).

Refer to Making a graph for details.

../_images/graph_window.png

Figure 33 [Graph Window]

../_images/scattered_chart_window.png

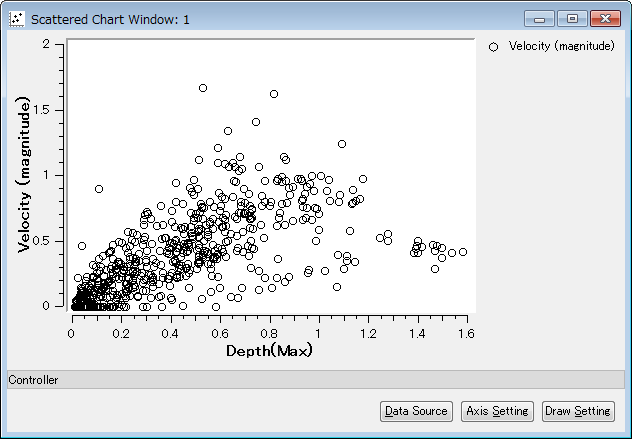

Figure 34 [Scattered Chart Window]
