[Scattered Chart Window]

The functions for opening a scattered chart window are explained in this section.

[Open new Scattered Chart Window]

Either of the following actions opens a new graph window.

Menu bar: [Calculation Results] (R) –> [Open New Scattered Chart Window]

Operation Toolbar:

The [Data Source Setting] dialog (Figure 477) will open, so select the data to draw graph and click on [OK]. A new [Scattered Chart Window] window (Figure 478) will open that draws a scattered chart for the data you selected.

Figure 477 [Data Source Setting] dialog

Figure 478 [Scattered Chart Window]

Additional Menu items

Table 43 shows the additional menu items for the [Scattered Chart Window]. The additional menu items are shown between [Import] and [Simulation] when the [Scattered Chart Window] is active.

Table 43 Additional menu items for [Scattered Chart Window]

Menu		Description
Draw (D)	[Data Source Setting] (D)	Display [Data Source Setting] dialog.
	[Axis Setting] (A)	Display [Axis Setting] dialog.
	[Draw Setting] (D)	Display [Draw Setting] dialog.

[Data Source Setting] (D)

Description: Set data source setting.

When you select this, the [Data Source Setting] dialog (Figure 477) will open. Modify setting and click on [OK].

[Axis Setting] (A)

Description: Set axis setting.

When you select this, the [Axis Setting] dialog (Figure 479) will open. Modify setting and click on [OK]. A new graph will be made according to the settings.

Figure 479 [Axis Setting] dialog

[Draw Setting] (D)

Description: Set the draw settings

When you select this, the [Draw Setting] dialog (Figure 480) will open. Modify setting and click on [OK]. A new graph will be made according to the settings.

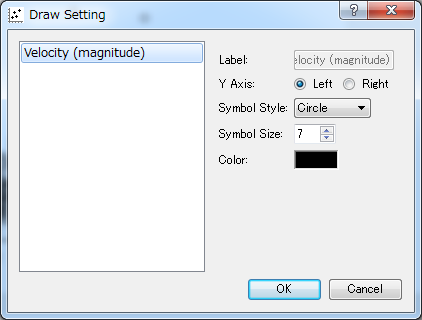

Figure 480 [Draw Setting] dialog
